Just Screen, No Distractions
Enhance UX with an Ultra-Narrow Bezel
The Most Elegant & Sophisticated POS Terminal Ever

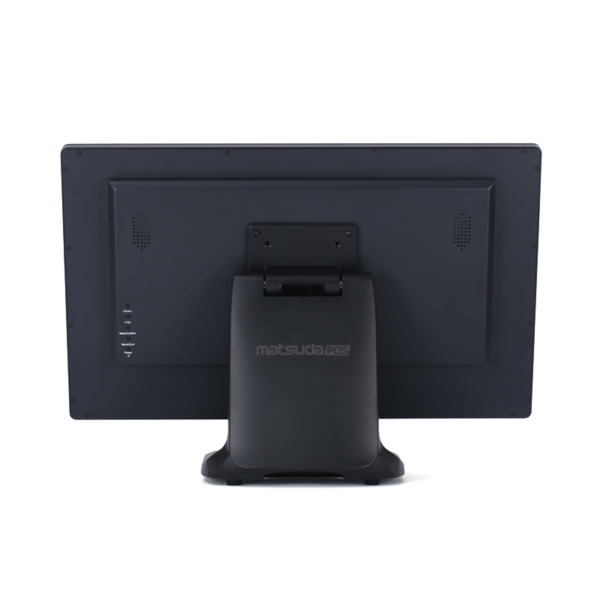

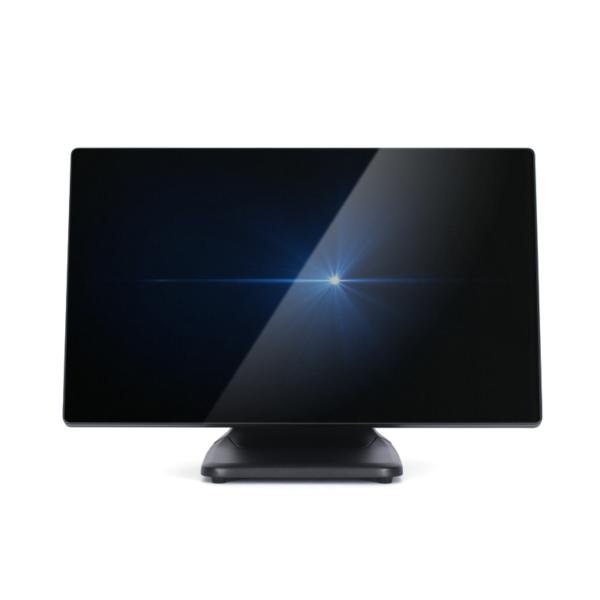

matsudapos’s ST021 Touchscreen Monitor
The matsudapos 21.5″ Touchscreen Monitor ST021 with a compact form factor and clean design for easy integration, the ST021 offers the flexibility to install as a traditional POS System or a customer facing point of interaction. Making it well-suited for Self-service Terminals, Self-service Vending Equipment, Medical Equipment, Banking Equipment, Industrial Equipment, Rail Transportation, Express Cabinets, etc. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the matsudapos’s 21.5inch touchscreen monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
VESA 75mm&100mm
In addition to the configuration of the base, it can be embedded, wall-mounted, etc.
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
Adapt to Your Application
Dual-Sided Attachments for Enhanced Versatility
Support attachments on both the left and right sides, offering greater flexibility and a a more comprehensive range of options, this expanded support not only accommodates additional attachments, but also allows for use by both left and right handed users, providing flexible installation to meet diverse needs.
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
| Specification | Details |
|---|---|
| Model Number | ST021 |
| Panel Size | Flat 21.5inch Touch Screen Monitor |
| Standard Resolution | 1366*768/1920*1080 |
| Aspect Ratio | 16:9 |
| Response Time | 5ms |
| View Angle | Horizontal:160°; Vertical:150° |
| Image Contrast Ratio | 500:01:00 |
| Brightness | 400 nits |
| Video Input Format | (analog) RGB |
| Connector | VGA for video signal HDMI; USB for touch signal |
| Frequency | 30~80KHz/50 - 60Hz |
| Duration | 50000 hours |
| Touch Validity | >1,000,000 |
| Wall - mounting Setup Support | Support wall brackets for wall - mounting, VESA 75mm&100mm |
| Housing Material | Aluminum alloy |
| Power Supply | External Power Supply:100 to 240V (DC 12V) |
| Package Size | 58cm*22cm*45cm (7.5KG) |
| Certification | ROHS, CE, FCC, etc. |
| Warranty | 3 years |
Specification
| System-Configuration | GT-7115 |
|---|---|
| Processor | Intel TGL UP3 Core i3 Intel TGL UP3 Core i5 Intel TGL UP3 Core i7 |
| System Memory | DDR4 SO-DIMM x 2, max. 64GB |
| Storage Device | M.2 SSD [ support both SATA and PCIe signal ] x 2 |
| RAID Function | Yes , (RAID 0/1) |
| Intel vPro Support | Yes, Depends on CPU installed |
| TPM | TPM 2.0 |
| Power Supply | 24V/120W |
| OS Support | Windows 10 IoT LTSC / Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 15” oTP LCD (Typ. 400 nits) |
| Resolution | 1024 x 768 |
| Touch | On-cell touch panel with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | RJ50 x 1 (on I/O plate), 5V/12V support |
| Standard USB Port | USB 3.0 x 4 (on I/O plate) |
| PoweredUSB Port | PUSB 12V x 1+ PUSB 24V x 1 (on I/O plate) |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | Internal USB-C x 1 for 2nd display only USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| CR Port | CR port x 1, control 2 x CR via optional Y-cable, support 24V CR |
| Audio | Internal 2W speaker x 2 |
| Expansion Slot | M.2 2230 for Wi-Fi/BT x 1 |
| USB-C Port | USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| Extend Storage | N/A |
| Dimension | |
| Dimension (W x D x H in mm) | 321.6 x 207 x 292.5 |
| Weight (N. W. in kg) | 3.958 kg |
| Environmental | |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Attachment Options | |
| Customer Facing Display | LM/TM-5011LC、LM/TM-5011PC、PD-2611UE |
| External I/O Module | GT-470 (PUSB 12v x 2) GT-570 (RJ50 x 2 + USB 2.0 x 4) GT-580 (RJ50 x 2 + USB 3.0 x 4) |
| Side Attachment | RA-101、RA-103、RA-104、RA-105、RA-106、RA-301、RA-311、RA-304、RA-305、RA-307 |
*product specifications and model configurations are subject to change and may vary by global region.
| Uploaded Date | Description | Version | Size | Language | File Type | Download |
|---|---|---|---|---|---|---|
| 2024-01-01 | 示例文件描述 | 1.0 | 10MB | English | Download | |
| 2024-01-02 | 文档说明示例 | 1.1 | 15MB | Chinese | DOCX | Download |
| 2024-01-03 | 图像相关描述 | 1.0 | 5MB | Japanese | JPEG | Download |
| 2024-01-04 | 示例音频文件描述 | 2.0 | 8MB | French | MP3 | Download |
| 2024-01-05 | 程序文件说明 | 3.2 | 20MB | German | EXE | Download |
| 2024-01-06 | 视频简介示例 | 1.3 | 50MB | Spanish | MP4 | Download |
| 2024-01-07 | 压缩包内容描述 | 1.0 | 30MB | Russian | ZIP | Download |
| 2024-01-08 | 表格文件说明 | 2.1 | 12MB | Italian | XLSX | Download |
| 2024-01-09 | 演示文稿描述 | 1.5 | 18MB | Dutch | PPTX | Download |
| 2024-01-10 | 文本文件示例说明 | 1.0 | 2MB | Portuguese | TXT | Download |
| 2024-01-11 | 数据库文件描述 | 4.0 | 25MB | Swedish | MDB | Download |
| 2024-01-12 | 配置文件说明 | 1.2 | 3MB | Danish | INI | Download |
| 2024-01-13 | 脚本文件描述 | 3.0 | 7MB | Norwegian | PY | Download |
| 2024-01-14 | 字体文件介绍 | 1.0 | 4MB | Finnish | TTF | Download |
| 2024-01-15 | 证书文件说明 | 1.1 | 6MB | Polish | CER | Download |
| 2024-01-16 | 日志文件描述 | 1.0 | 9MB | Hungarian | LOG | Download |
| Uploaded Date | Description | Version | Size | Language | File Type | Download |
|---|---|---|---|---|---|---|
| 2024-01-01 | 示例文件描述 | 1.0 | 10MB | English | Download | |
| 2024-01-02 | 文档说明示例 | 1.1 | 15MB | Chinese | DOCX | Download |
| 2024-01-03 | 图像相关描述 | 1.0 | 5MB | Japanese | JPEG | Download |
| 2024-01-04 | 示例音频文件描述 | 2.0 | 8MB | French | MP3 | Download |
| 2024-01-05 | 程序文件说明 | 3.2 | 20MB | German | EXE | Download |
| 2024-01-06 | 视频简介示例 | 1.3 | 50MB | Spanish | MP4 | Download |
| 2024-01-07 | 压缩包内容描述 | 1.0 | 30MB | Russian | ZIP | Download |
| 2024-01-08 | 表格文件说明 | 2.1 | 12MB | Italian | XLSX | Download |
| 2024-01-09 | 演示文稿描述 | 1.5 | 18MB | Dutch | PPTX | Download |
| 2024-01-10 | 文本文件示例说明 | 1.0 | 2MB | Portuguese | TXT | Download |
| 2024-01-11 | 数据库文件描述 | 4.0 | 25MB | Swedish | MDB | Download |
| 2024-01-12 | 配置文件说明 | 1.2 | 3MB | Danish | INI | Download |
| 2024-01-13 | 脚本文件描述 | 3.0 | 7MB | Norwegian | PY | Download |
| 2024-01-14 | 字体文件介绍 | 1.0 | 4MB | Finnish | TTF | Download |
| 2024-01-15 | 证书文件说明 | 1.1 | 6MB | Polish | CER | Download |
| 2024-01-16 | 日志文件描述 | 1.0 | 9MB | Hungarian | LOG | Download |
| Uploaded Date | Description | Version | Size | Language | File Type | Download |
|---|---|---|---|---|---|---|
| 2024-01-01 | 示例文件描述 | 1.0 | 10MB | English | Download | |
| 2024-01-02 | 文档说明示例 | 1.1 | 15MB | Chinese | DOCX | Download |
| 2024-01-03 | 图像相关描述 | 1.0 | 5MB | Japanese | JPEG | Download |
| 2024-01-04 | 示例音频文件描述 | 2.0 | 8MB | French | MP3 | Download |
| 2024-01-05 | 程序文件说明 | 3.2 | 20MB | German | EXE | Download |
| 2024-01-06 | 视频简介示例 | 1.3 | 50MB | Spanish | MP4 | Download |
| 2024-01-07 | 压缩包内容描述 | 1.0 | 30MB | Russian | ZIP | Download |
| 2024-01-08 | 表格文件说明 | 2.1 | 12MB | Italian | XLSX | Download |
| 2024-01-09 | 演示文稿描述 | 1.5 | 18MB | Dutch | PPTX | Download |
| 2024-01-10 | 文本文件示例说明 | 1.0 | 2MB | Portuguese | TXT | Download |
| 2024-01-11 | 数据库文件描述 | 4.0 | 25MB | Swedish | MDB | Download |
| 2024-01-12 | 配置文件说明 | 1.2 | 3MB | Danish | INI | Download |
| 2024-01-13 | 脚本文件描述 | 3.0 | 7MB | Norwegian | PY | Download |
| 2024-01-14 | 字体文件介绍 | 1.0 | 4MB | Finnish | TTF | Download |
| 2024-01-15 | 证书文件说明 | 1.1 | 6MB | Polish | CER | Download |
| 2024-01-16 | 日志文件描述 | 1.0 | 9MB | Hungarian | LOG | Download |
Side Attachment
Side Attachment
RA-103
RA-104
RA-301
RA-311
Contact Sales
Rigorous Quality Control
· 15” LED Capacitive Touch Screen
· OS: Windows/ Linux/ Android
· Aluminum Alloy Heat Dissipation
· 2nd Screen: 9.7”/12”/15”
· The wiring port is designed for hidden wire
