Just Screen, No Distractions
Enhance UX with an Ultra-Narrow Bezel

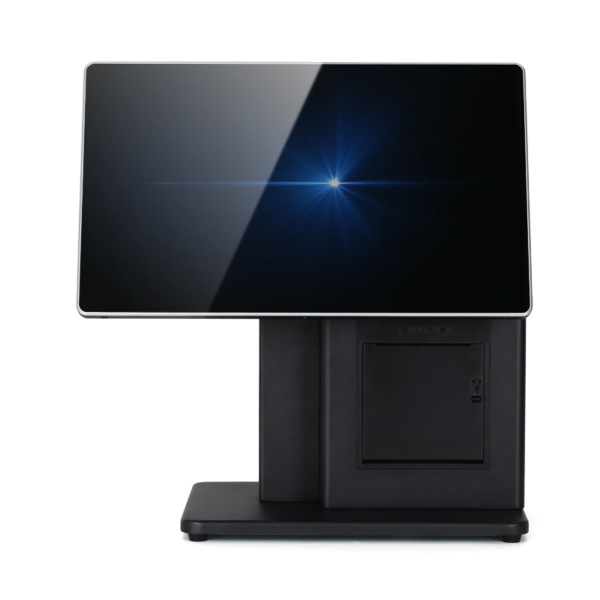

The Most Elegant & Sophisticated POS Terminal Ever
Better POS, Better Business
Using high-performance Intel processor,
the POS hardware can be integrated with a choice of
different Intel processors for enhanced performance
to run today’s demanding POS applications.J4125, J3710Elegant l Design
Aluminum Alloy Base Stand
An aluminum alloy base with an elegant l style design offers a high-end experience. The l/0 Hub hides in the base and lines out on the table for easier extension of the POS peripheral product.Waterproof, Oilproof, DustproofDamage Resistance, Waterproof, Oilproof, Dustproof. This allows the cash register to be used in more scenarios. For example: kitchens with lots of oil, drinking establishments with lots of water, etc.
Excellent Performance, Easy to Operate
Using high-performance Intel processor,
the POS hardware can be integrated with a choice of
different Intel processors for enhanced performance
to run today’s demanding POS applications.
J4125, J3710
Elegant l Design
Aluminum Alloy Base Stand
An aluminum alloy base with an elegant l style design offers a high-end experience. The l/0 Hub hides in the base and lines out on the table for easier extension of the POS peripheral product.
10 Point Ture Flat Capacitive Touch Screen
Up to 10 simultaneous points, multi-touch function, extraordinary brightness and prevent blow up.
Waterproof, Oilproof, Dustproof
Damage Resistance, Waterproof, Oilproof, Dustproof. This allows the cash register to be used in more scenarios. For example: kitchens with lots of oil, drinking establishments with lots of water, etc.
Adapt to Your Application
Dual-Sided Attachments for Enhanced Versatility
Support attachments on both the left and right sides, offering greater flexibility and a a more comprehensive range of options, this expanded support not only accommodates additional attachments, but also allows for use by both left and right handed users, providing flexible installation to meet diverse needs.
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
| Specification | Details |
|---|---|
| Model Number | ST9200F |
| CPU | WINDOWS: Intel Celeron J4125 Quad Core 2.0GHz up to 2.5GHz; Intel Quad - Core Pentium Processor J3710 up to 2.64GHz |
| ANDROID: RK3566 Quad - core cortex A55 up to 2.0GHz; RK3568 Quad - core ARM Cortex A55 up to 1.8GHz/2.0GHz | |
| Memory | WINDOWS: 4GB, 8GB, 16GB |
| ANDROID: 2GB, 4GB | |
| Hard Disk | WINDOWS: 128GB, 256GB, 512GB |
| ANDROID: 32GB, 64GB | |
| Ethernet | WINDOWS: 10M/100M/1000M Self - adaption |
| ANDROID: 1wifi&BT module, 1 RJ45 Ethernet port | |
| I/O Port | DC*1, USB3.0*2, USB2.0*4, LAN*1, COM*2, RJ11*1 |
| Display Screen | 15.6inch True Flat Screen (16:9) |
| Resolution | 1366*768/1920*1080 |
| Touch Screen | 10 Points Capacitive Touch |
| OS Support | Windows10/11, Linux, Android 11 - 13 etc. |
| Housing Material | Metal |
| Power Supply | 12V, 5A |
| Warranty | 3 Years |
| Color | Black/Silver (Customizable) |
| Package Size | 44.5cm*36cm*45cm(12KG) |
| Certification | ROHS, CE, FCC, etc. |
| Option | Customer Display: 11.6″/15.6″; Built - in: WIFI/ Bluetooth/Loudspeaker; Reader: MSR/ RFID/ NFC/ IBUTTON; Printer: 80mm thermal printer |
Specification
| System-Configuration | GT-7115 |
|---|---|
| Processor | Intel TGL UP3 Core i3 Intel TGL UP3 Core i5 Intel TGL UP3 Core i7 |
| System Memory | DDR4 SO-DIMM x 2, max. 64GB |
| Storage Device | M.2 SSD [ support both SATA and PCIe signal ] x 2 |
| RAID Function | Yes , (RAID 0/1) |
| Intel vPro Support | Yes, Depends on CPU installed |
| TPM | TPM 2.0 |
| Power Supply | 24V/120W |
| OS Support | Windows 10 IoT LTSC / Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 15” oTP LCD (Typ. 400 nits) |
| Resolution | 1024 x 768 |
| Touch | On-cell touch panel with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | RJ50 x 1 (on I/O plate), 5V/12V support |
| Standard USB Port | USB 3.0 x 4 (on I/O plate) |
| PoweredUSB Port | PUSB 12V x 1+ PUSB 24V x 1 (on I/O plate) |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | Internal USB-C x 1 for 2nd display only USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| CR Port | CR port x 1, control 2 x CR via optional Y-cable, support 24V CR |
| Audio | Internal 2W speaker x 2 |
| Expansion Slot | M.2 2230 for Wi-Fi/BT x 1 |
| USB-C Port | USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| Extend Storage | N/A |
| Dimension | |
| Dimension (W x D x H in mm) | 321.6 x 207 x 292.5 |
| Weight (N. W. in kg) | 3.958 kg |
| Environmental | |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Attachment Options | |
| Customer Facing Display | LM/TM-5011LC、LM/TM-5011PC、PD-2611UE |
| External I/O Module | GT-470 (PUSB 12v x 2) GT-570 (RJ50 x 2 + USB 2.0 x 4) GT-580 (RJ50 x 2 + USB 3.0 x 4) |
| Side Attachment | RA-101、RA-103、RA-104、RA-105、RA-106、RA-301、RA-311、RA-304、RA-305、RA-307 |
*product specifications and model configurations are subject to change and may vary by global region.
