Just Screen, No Distractions
Enhance UX with an Ultra-Narrow Bezel
The Most Elegant & Sophisticated POS Terminal Ever
Strong Die Cast Aluminium Structure
Ultra-narrow Bezel for Maximum Display Area
This robust construction not only ensures durability but also facilitates efficient heat dissipation, allowing the cash register to operate continuously for 24 hours without overheating. The metal design enhances thermal management, making it ideal for high-demand environments.
Versatility in Mounting Options
The touch POS system is designed for versatile applications,
making it suitable for KDS or wall-mounted use to
accommodate various settings and scenarios. Its flexibility
allows it to seamlessly adapt to different environments,
ensuring efficient and convenient operations wherever it is
deployed. Whether in a busy restaurant, a retail store, or
any other business setting, this system’s wall-mount
capability offers a space-saving solution without
compromising functionality.
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
这是小标题
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
10 Point Ture Flat Capacitive Touch Screen
Up to 10 simultaneous points, multi-touch function, extraordinary brightness and prevent blow up.
Free LOGO Customization
One POS machine sample, you can customize the LOGO for free, the choice of LOGO is: laser printing, plastic stickers and PVC stickers.
Adapt to Your Application
Dual-Sided Attachments for Enhanced Versatility
Support attachments on both the left and right sides, offering greater flexibility and a a more comprehensive range of options, this expanded support not only accommodates additional attachments, but also allows for use by both left and right handed users, providing flexible installation to meet diverse needs.
Rich POS Peripherals. Meet Your Different Business Needs.

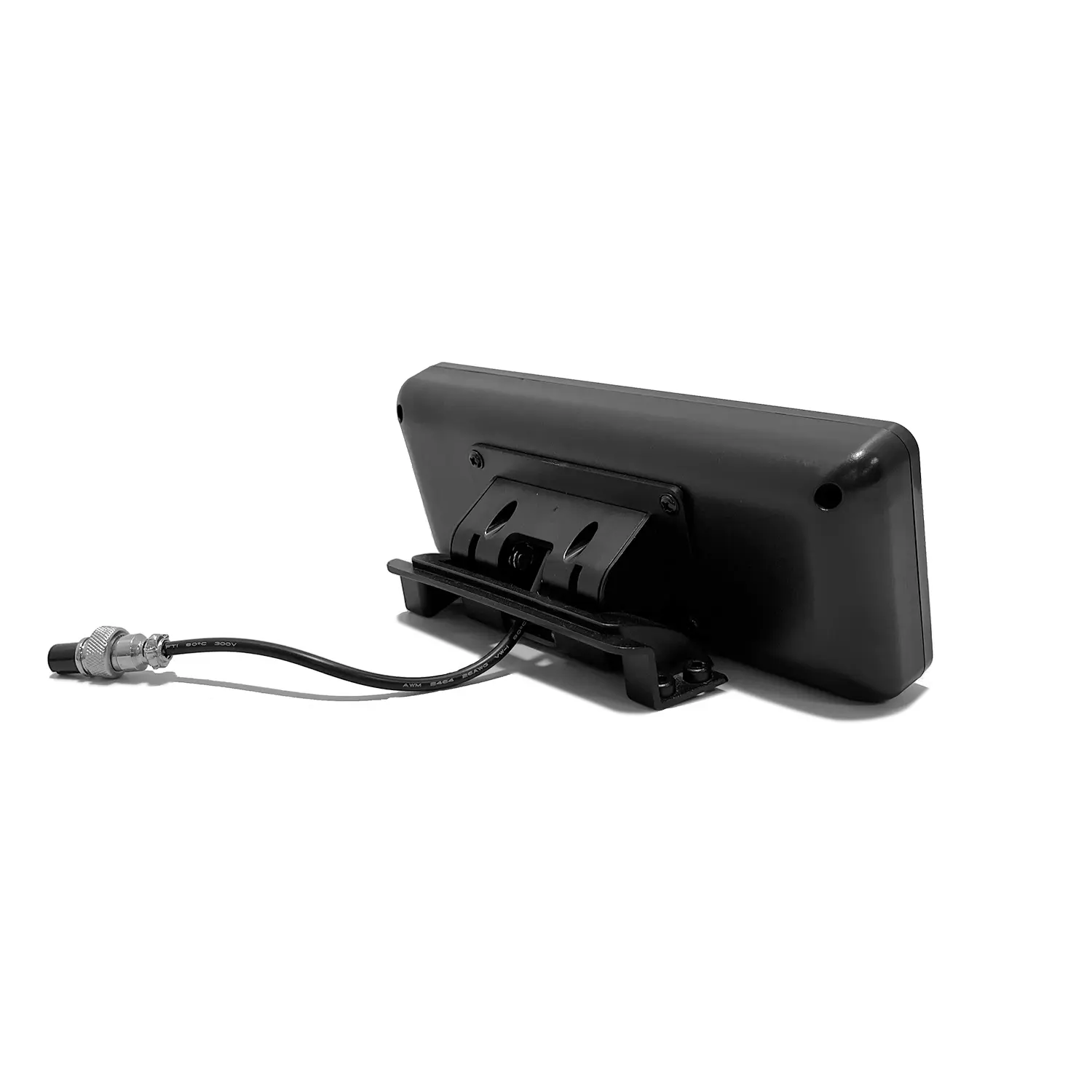

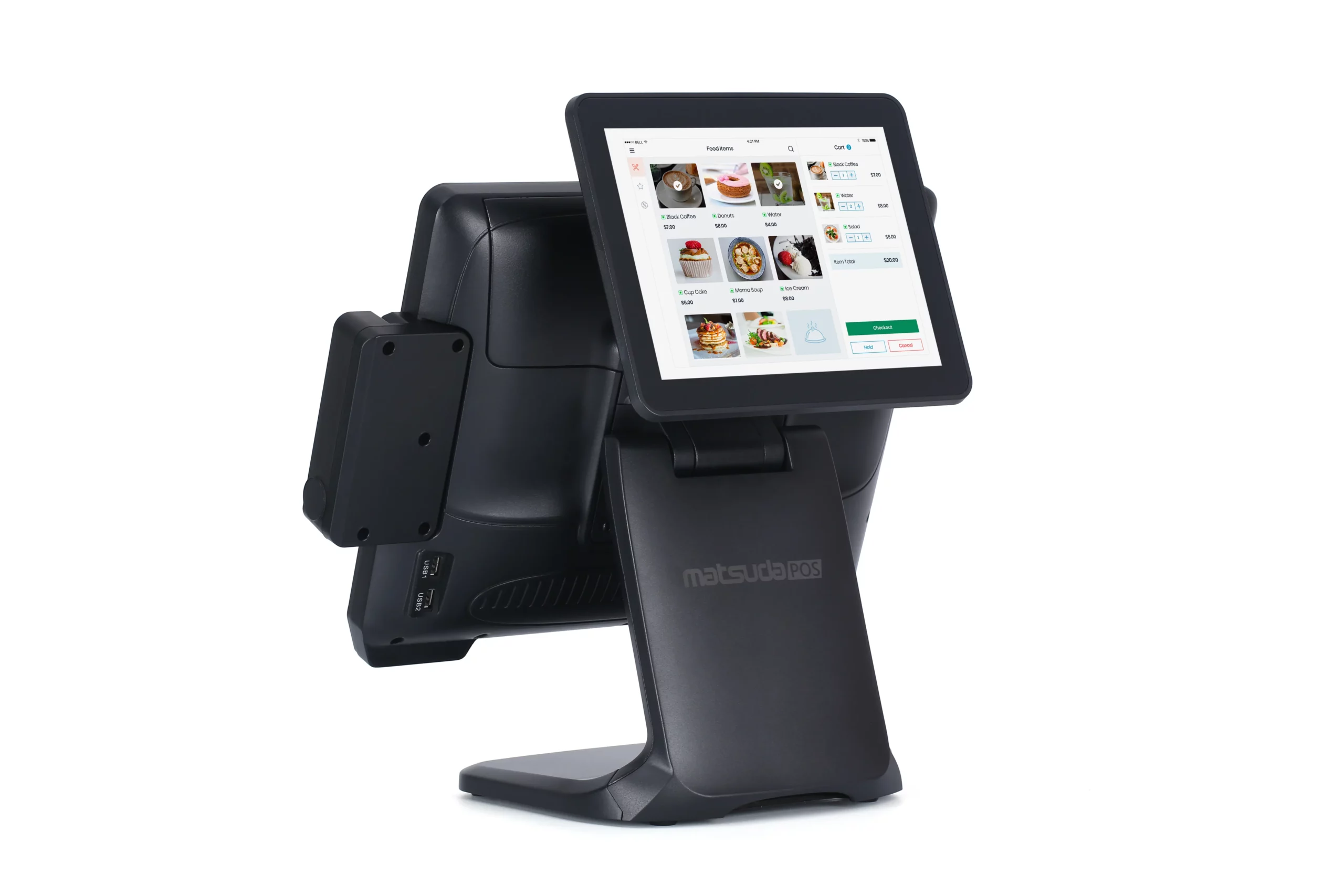

Built on a modular platform and available with either 15-inch or 15 6-inch displays, the ST9800 for Windows can be used in so many different scenarios, mostly in the retail, supermarket, and restaurant industries. It can be with built-in VFD, a 9.7-inch second display, or an 11.6-inch second display.
Modular Design with Detachable Base
这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案这是文案
Wire Concealed Design
all IO interface lines of the machine are hidden, coming out from the base bracket.
Detachable Base
The freight can be saved as the base can be removed, and single screen pos system packaging size is 43*20*43cm.
| Specification | Details |
|---|---|
| Model Number | ST9800 |
| CPU | WINDOWS: Intel Processor N97 (6M Cache, up to 3.60 GHz); Intel Processor N100(6M Cache, up to 3.40GHz); Intel Celeron Processor J4125(4M Cache, up to 2.70GHz); Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz); Intel Core i3 Dual Core (the 10th, 11th gen); Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) |
| ANDROID: RK3288 Quad-core Cortex-A17 up to 1.8GHz; RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz | |
| Memory | WINDOWS: 4GB, 8GB, 16GB |
| ANDROID: 4GB, 8GB | |
| Hard Disk | WINDOWS: 128GB, 256GB, 512GB |
| ANDROID: 32GB, 64GB | |
| Ethernet | WINDOWS: 10M/100M/1000M Self-adaption |
| ANDROID: 1wifi&BT module, 1 RJ45 Ethernet port | |
| I/O Port | WINDOWS: LINE-OUT*1, Type C*2, DC-IN*1, USB3.0*2, RJ11*1, LAN*1, COM*1 |
| ANDROID: DC*1, RJ11*1, COM*2, USB*6, SIM&SD*1, LAN*1, AU*2 | |
| Display Screen | 15inch True Flat Screen (5:4) |
| Resolution | 1024*768 |
| Touch Screen | 10 Points Capacitive Touch |
| OS Support | Windows10/11, Linux, Android 4.1 - 11 etc. |
| Housing Material | Metal |
| Power Supply | 12V, 5A |
| Warranty | 3 Years |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) |
| Package Size | 43cm*20cm*43cm 7.5KG (Single Screen); 47cm*27cm*45cm 9.5KG (Dual Screen) |
| Certification | ROHS, CE, FCC, etc. |

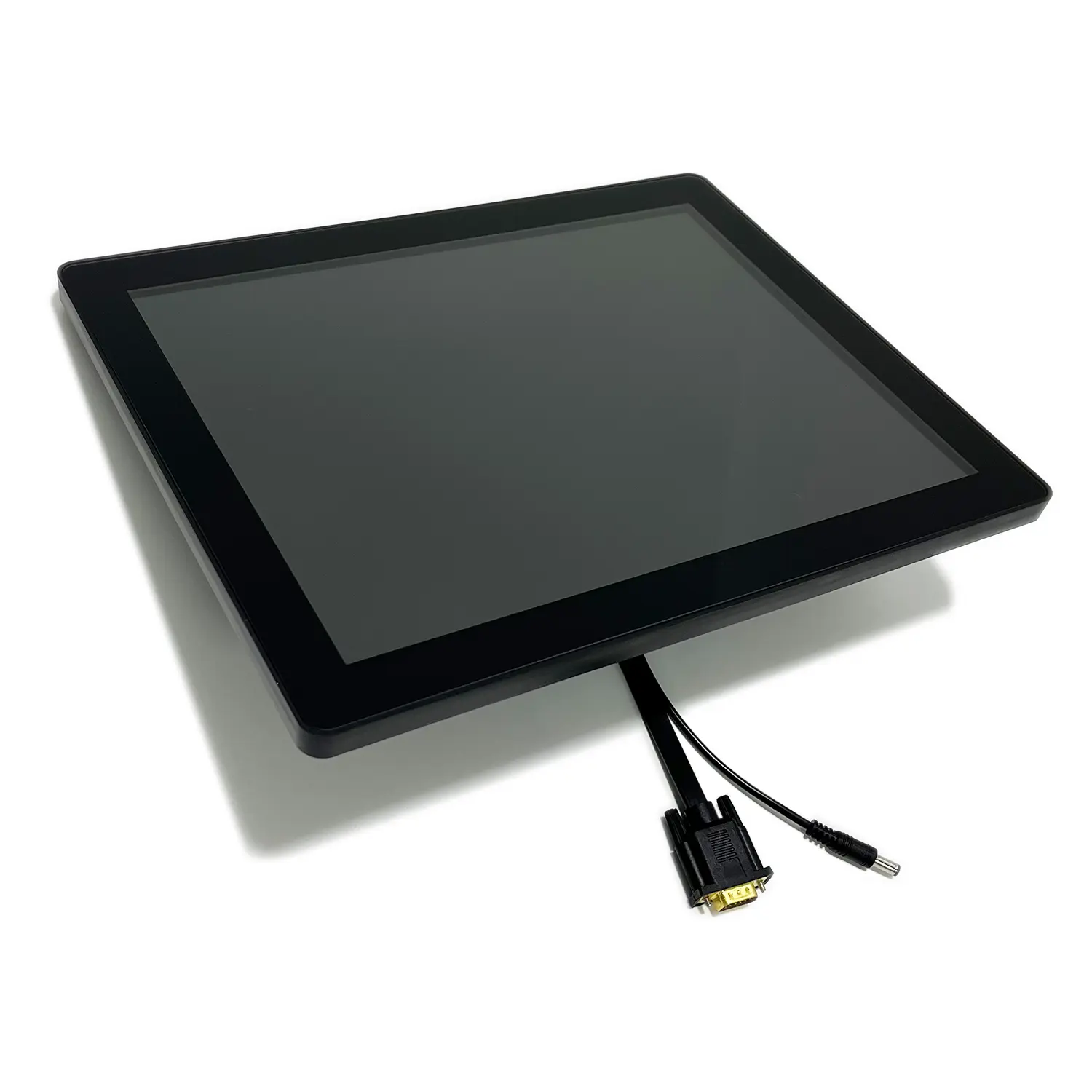

| Option | Customer Display: 9.7″/11.6″/12″/15″/15.6″; Built-in: WIFI/ Bluetooth/Loudspeaker; Reader: MSR/ RFID/ NFC/ IBUTTON |
Specification
| System-Configuration | GT-7115 |
|---|---|
| Processor | Intel TGL UP3 Core i3 Intel TGL UP3 Core i5 Intel TGL UP3 Core i7 |
| System Memory | DDR4 SO-DIMM x 2, max. 64GB |
| Storage Device | M.2 SSD [ support both SATA and PCIe signal ] x 2 |
| RAID Function | Yes , (RAID 0/1) |
| Intel vPro Support | Yes, Depends on CPU installed |
| TPM | TPM 2.0 |
| Power Supply | 24V/120W |
| OS Support | Windows 10 IoT LTSC / Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 15” oTP LCD (Typ. 400 nits) |
| Resolution | 1024 x 768 |
| Touch | On-cell touch panel with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | RJ50 x 1 (on I/O plate), 5V/12V support |
| Standard USB Port | USB 3.0 x 4 (on I/O plate) |
| PoweredUSB Port | PUSB 12V x 1+ PUSB 24V x 1 (on I/O plate) |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | Internal USB-C x 1 for 2nd display only USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| CR Port | CR port x 1, control 2 x CR via optional Y-cable, support 24V CR |
| Audio | Internal 2W speaker x 2 |
| Expansion Slot | M.2 2230 for Wi-Fi/BT x 1 |
| USB-C Port | USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| Extend Storage | N/A |
| Dimension | |
| Dimension (W x D x H in mm) | 321.6 x 207 x 292.5 |
| Weight (N. W. in kg) | 3.958 kg |
| Environmental | |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Attachment Options | |
| Customer Facing Display | LM/TM-5011LC、LM/TM-5011PC、PD-2611UE |
| External I/O Module | GT-470 (PUSB 12v x 2) GT-570 (RJ50 x 2 + USB 2.0 x 4) GT-580 (RJ50 x 2 + USB 3.0 x 4) |
| Side Attachment | RA-101、RA-103、RA-104、RA-105、RA-106、RA-301、RA-311、RA-304、RA-305、RA-307 |
*product specifications and model configurations are subject to change and may vary by global region.
| Uploaded Date | Description | Version | Size | Language | File Type | Download |
|---|---|---|---|---|---|---|
| 2024-01-01 | 示例文件描述 | 1.0 | 10MB | English | Download | |
| 2024-01-02 | 文档说明示例 | 1.1 | 15MB | Chinese | DOCX | Download |
| 2024-01-03 | 图像相关描述 | 1.0 | 5MB | Japanese | JPEG | Download |
| 2024-01-04 | 示例音频文件描述 | 2.0 | 8MB | French | MP3 | Download |
| 2024-01-05 | 程序文件说明 | 3.2 | 20MB | German | EXE | Download |
| 2024-01-06 | 视频简介示例 | 1.3 | 50MB | Spanish | MP4 | Download |
| 2024-01-07 | 压缩包内容描述 | 1.0 | 30MB | Russian | ZIP | Download |
| 2024-01-08 | 表格文件说明 | 2.1 | 12MB | Italian | XLSX | Download |
| 2024-01-09 | 演示文稿描述 | 1.5 | 18MB | Dutch | PPTX | Download |
| 2024-01-10 | 文本文件示例说明 | 1.0 | 2MB | Portuguese | TXT | Download |
| 2024-01-11 | 数据库文件描述 | 4.0 | 25MB | Swedish | MDB | Download |
| 2024-01-12 | 配置文件说明 | 1.2 | 3MB | Danish | INI | Download |
| 2024-01-13 | 脚本文件描述 | 3.0 | 7MB | Norwegian | PY | Download |
| 2024-01-14 | 字体文件介绍 | 1.0 | 4MB | Finnish | TTF | Download |
| 2024-01-15 | 证书文件说明 | 1.1 | 6MB | Polish | CER | Download |
| 2024-01-16 | 日志文件描述 | 1.0 | 9MB | Hungarian | LOG | Download |
| Uploaded Date | Description | Version | Size | Language | File Type | Download |
|---|---|---|---|---|---|---|
| 2024-01-01 | 示例文件描述 | 1.0 | 10MB | English | Download | |
| 2024-01-02 | 文档说明示例 | 1.1 | 15MB | Chinese | DOCX | Download |
| 2024-01-03 | 图像相关描述 | 1.0 | 5MB | Japanese | JPEG | Download |
| 2024-01-04 | 示例音频文件描述 | 2.0 | 8MB | French | MP3 | Download |
| 2024-01-05 | 程序文件说明 | 3.2 | 20MB | German | EXE | Download |
| 2024-01-06 | 视频简介示例 | 1.3 | 50MB | Spanish | MP4 | Download |
| 2024-01-07 | 压缩包内容描述 | 1.0 | 30MB | Russian | ZIP | Download |
| 2024-01-08 | 表格文件说明 | 2.1 | 12MB | Italian | XLSX | Download |
| 2024-01-09 | 演示文稿描述 | 1.5 | 18MB | Dutch | PPTX | Download |
| 2024-01-10 | 文本文件示例说明 | 1.0 | 2MB | Portuguese | TXT | Download |
| 2024-01-11 | 数据库文件描述 | 4.0 | 25MB | Swedish | MDB | Download |
| 2024-01-12 | 配置文件说明 | 1.2 | 3MB | Danish | INI | Download |
| 2024-01-13 | 脚本文件描述 | 3.0 | 7MB | Norwegian | PY | Download |
| 2024-01-14 | 字体文件介绍 | 1.0 | 4MB | Finnish | TTF | Download |
| 2024-01-15 | 证书文件说明 | 1.1 | 6MB | Polish | CER | Download |
| 2024-01-16 | 日志文件描述 | 1.0 | 9MB | Hungarian | LOG | Download |
| Uploaded Date | Description | Version | Size | Language | File Type | Download |
|---|---|---|---|---|---|---|
| 2024-01-01 | 示例文件描述 | 1.0 | 10MB | English | Download | |
| 2024-01-02 | 文档说明示例 | 1.1 | 15MB | Chinese | DOCX | Download |
| 2024-01-03 | 图像相关描述 | 1.0 | 5MB | Japanese | JPEG | Download |
| 2024-01-04 | 示例音频文件描述 | 2.0 | 8MB | French | MP3 | Download |
| 2024-01-05 | 程序文件说明 | 3.2 | 20MB | German | EXE | Download |
| 2024-01-06 | 视频简介示例 | 1.3 | 50MB | Spanish | MP4 | Download |
| 2024-01-07 | 压缩包内容描述 | 1.0 | 30MB | Russian | ZIP | Download |
| 2024-01-08 | 表格文件说明 | 2.1 | 12MB | Italian | XLSX | Download |
| 2024-01-09 | 演示文稿描述 | 1.5 | 18MB | Dutch | PPTX | Download |
| 2024-01-10 | 文本文件示例说明 | 1.0 | 2MB | Portuguese | TXT | Download |
| 2024-01-11 | 数据库文件描述 | 4.0 | 25MB | Swedish | MDB | Download |
| 2024-01-12 | 配置文件说明 | 1.2 | 3MB | Danish | INI | Download |
| 2024-01-13 | 脚本文件描述 | 3.0 | 7MB | Norwegian | PY | Download |
| 2024-01-14 | 字体文件介绍 | 1.0 | 4MB | Finnish | TTF | Download |
| 2024-01-15 | 证书文件说明 | 1.1 | 6MB | Polish | CER | Download |
| 2024-01-16 | 日志文件描述 | 1.0 | 9MB | Hungarian | LOG | Download |
Side Attachment
Side Attachment
RA-103
RA-104
RA-301
RA-311
Contact Sales
Rigorous Quality Control
1. Strong die-cast aluminum structure (good heat dissipation);
2. Available in single screen, dual-screen(9.7″, 12″, 15″), VFD, MSR, etc.
3. Hidden line design (all IO interface lines
of the machine are hidden, coming out from the base bracket)
4. Fanless CPU, more silent.
5. The freight can be saved as the base can be removed, and one pos system
packaging weight is only 7.9 kg.
6. Support LOGO customization (free)
